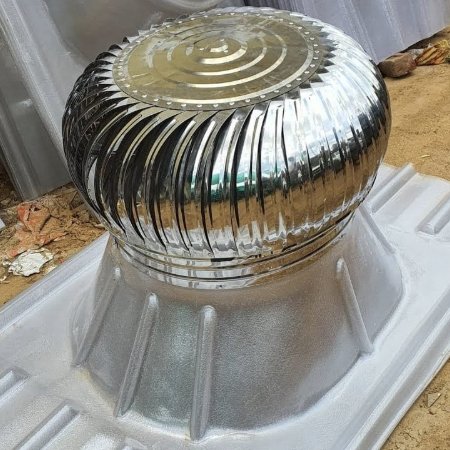

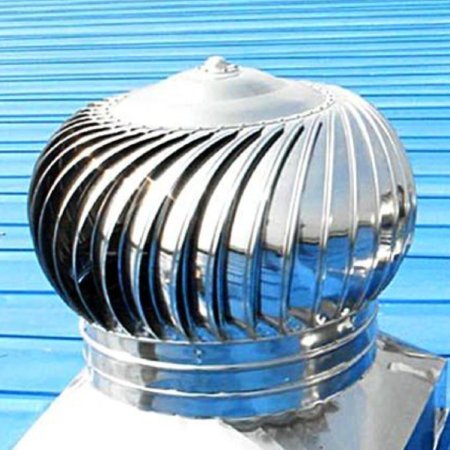

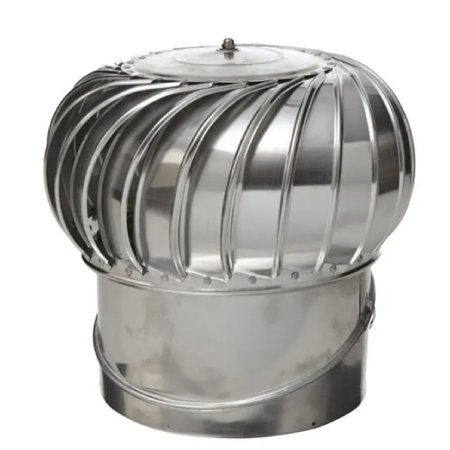

The Turbo Air Ventilator is a high-efficiency, wind-powered ventilation system designed to remove heat, humidity, smoke, and stale air from industrial, commercial, and residential spaces.
Engineered for durability and performance, it provides a cost-effective and eco-friendly solution for maintaining fresh indoor air.
Designed with a 24-inch neck size, it ensures high-capacity airflow, effectively removing hot and stale air from large spaces.
Operates entirely on natural wind power, eliminating electricity costs and ensuring continuous ventilation even during power outages.
Manufactured using high-quality aluminum or stainless steel, it offers excellent resistance against rust and long-term wear.
Equipped with precision-engineered bearings, the ventilator runs quietly without disturbing the surrounding environment.
Built to withstand harsh climates, it resists rain, dust, and extreme temperatures for uninterrupted performance.

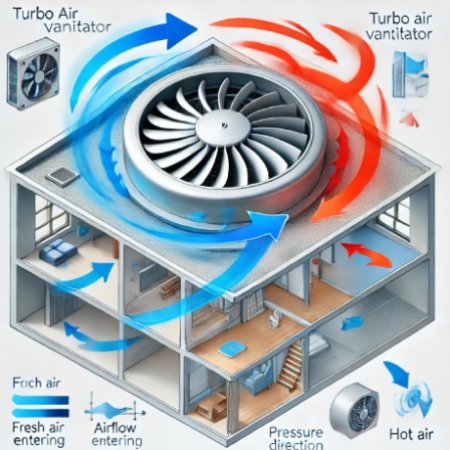

Effectively expels trapped heat and moisture, creating a cooler and more comfortable indoor environment.
| Brand | Maxlite |
|---|---|
| Turbine Weight | 5.25kg |
| Rivets | Aluminium Alloy with washer |
| Material | Stainless Steel |
| Neck/Throat | 24 inch(610 mm) |
| Height | 16 inch(410 mm) |
| Vanes( Blades) | 38 vanes.0.3mm |
| Bearing Types | SKF- 6000ZZ Permanently Lubricated & Sealed |
| Top Plate Moc | SS 0.5 mm |
| Centre Shaft | 12 mm SS |
| Inner Arms | Stainless Steel |
| Outer Arms | Stainless Steel |
| SS Grade | 430 |
| Number of Bearings | 2 nos |
| Exhaust Capacity | 1972 CFM |
| Base Ring | Stainless Steel |
