UltraLite® MULTIWALL UV2,3/16-16mm

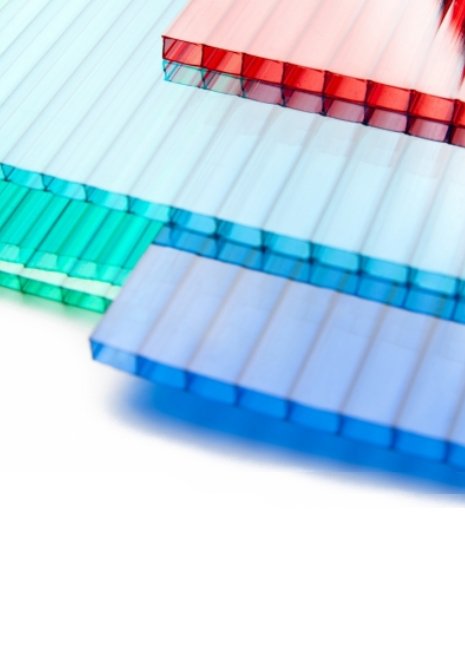

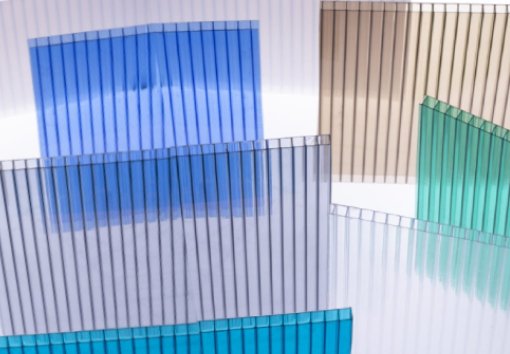

UltraLite® multiwall UV2, 3/16-16 mm is a triple wall polycarbonatesheet of 16mm thickness. It combines high light transmission, good load bearing properties and excellent weather resistance. The sheet is light weight, impact resistant and easy to install.
Is ideal for

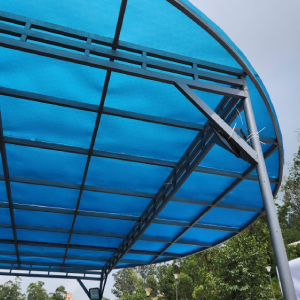

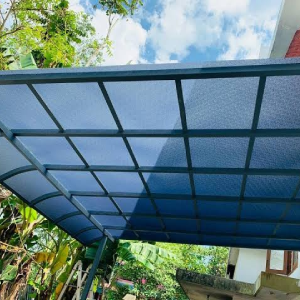

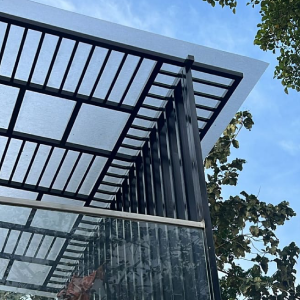

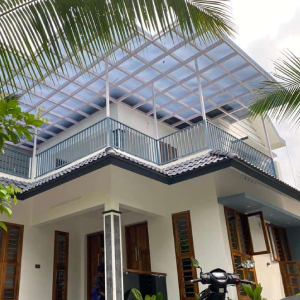

cold-curved barrel vaults. it can also be installed as flat glazing. •industrialglazing, sports stadiums •stations •green houses •conservatories •covered walk ways •car ports , porches, shelters •partition walls •sky lights, barrel vaults, north light glazing •roofing
The sheets are produced with a coextruded UV-protective layer on both sides, which is homogeneously fused with the sheet material. It provides UltraLite® Multiwall UV 2 with a highly effective protection against weathering for 10 years.
| Typical Values | |
| Area weight | 2.8kg/m2 |
| Width | 1220 & 2100mm |
| Length | 11800mm |
| Min cold bending radius | 2400mm |
| Light transmission TD65 (UV Absorbing) | Clear 74±3% White 45±3% Bronze 35±3% Blue 35±3% Green 40±3% |
| Total energy transmission g | Clear 69% |
| Heat transfer co efficient Ug | 2.4W/m2K |
(1)The cold-bending must be parallel to the ribs of the sheets, never cross wise (risk of buckling).
(2)Fire certificates are limited in time and scope, always check if the mentioned certificate is valid for the purchased Polycarbonate sheet type at the date of
delivery. Polycarbonate sheets may change their fire behavior due to ageing and weathering. The indicated fire rating was tested on new/ UN weathered
Product in accordance with the indicated fire classification standards, except for Product rated “B1” in accordance with DIN4102.
(3)Heat transfer coefficient Ug according to EN ISO 10077-2
